Power supply Vinga 400W (VPS-400APFC)

Article: VPS-400APFC
EAN code: 4823093300989
|
(3)
Power
400 W
PSU Standard
ATX
PSU Type
for computers
Warranty, month
36

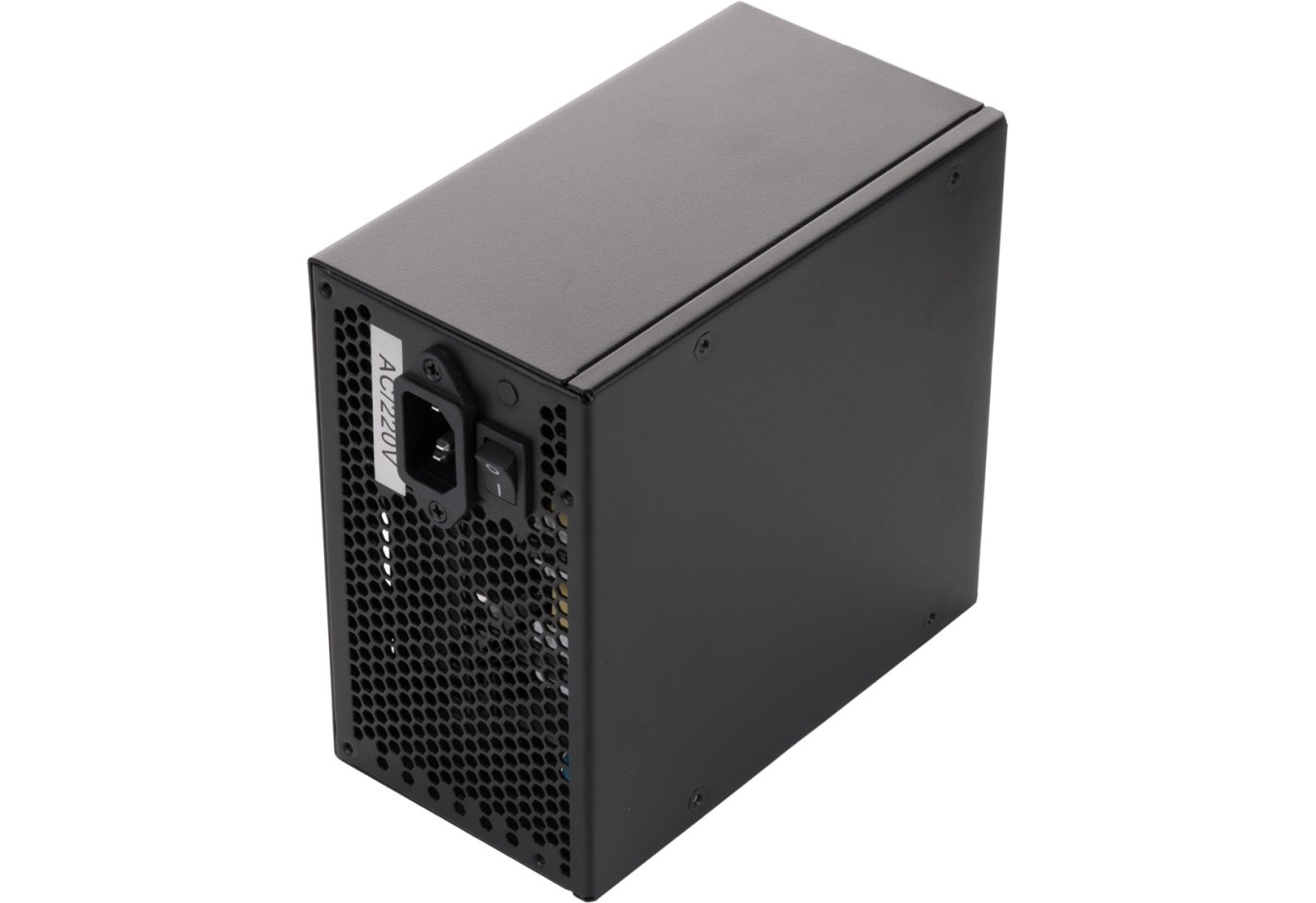

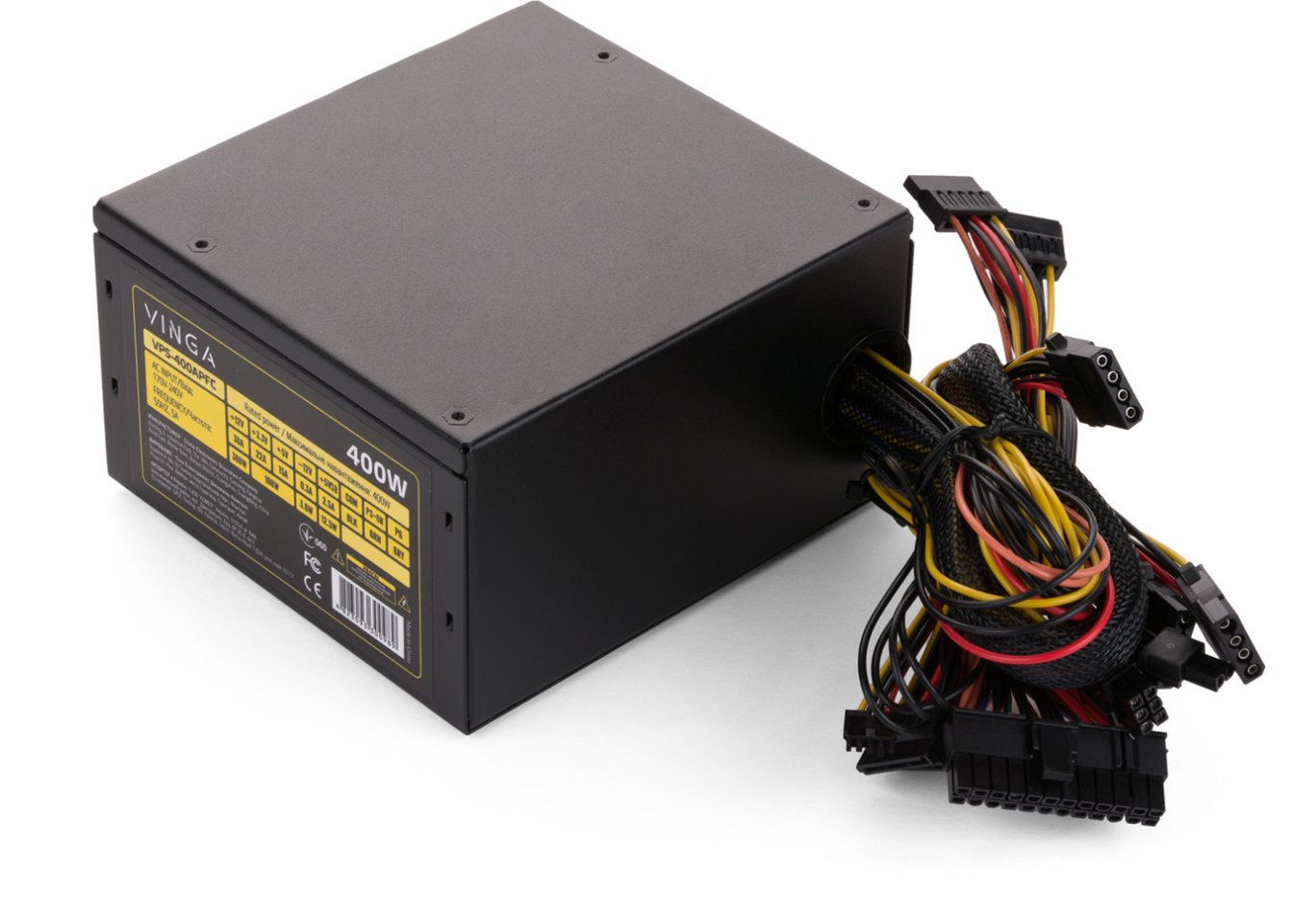

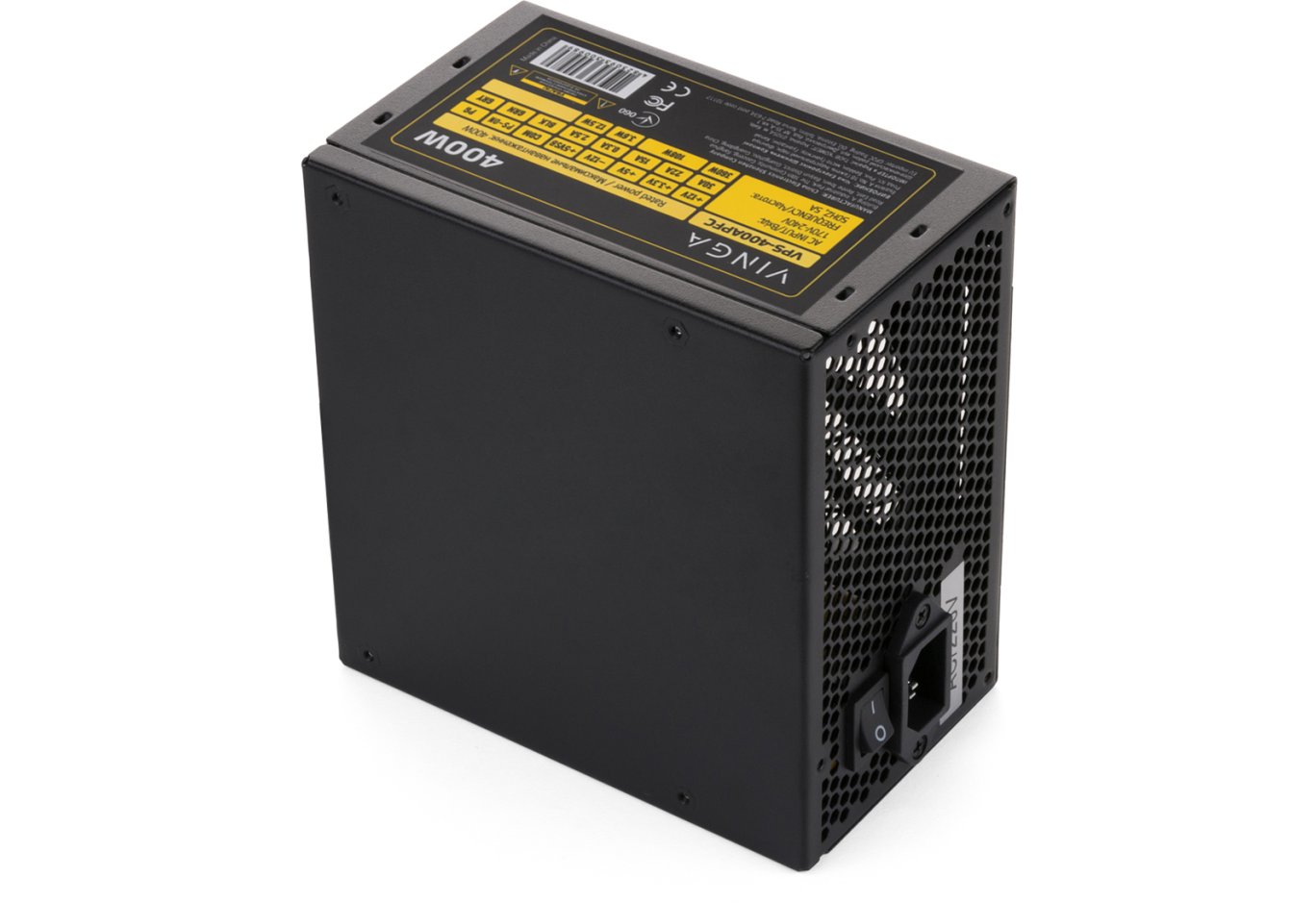

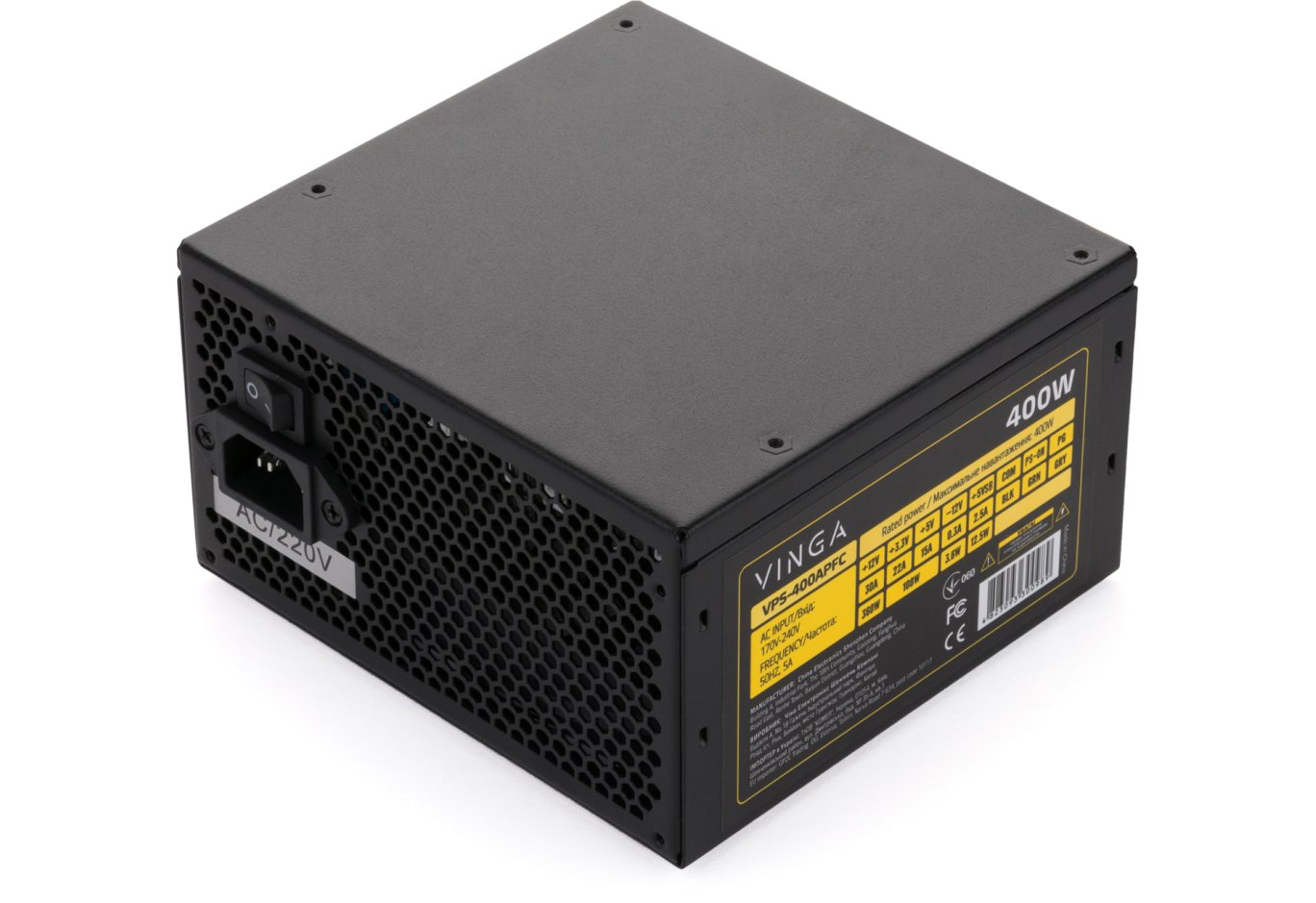

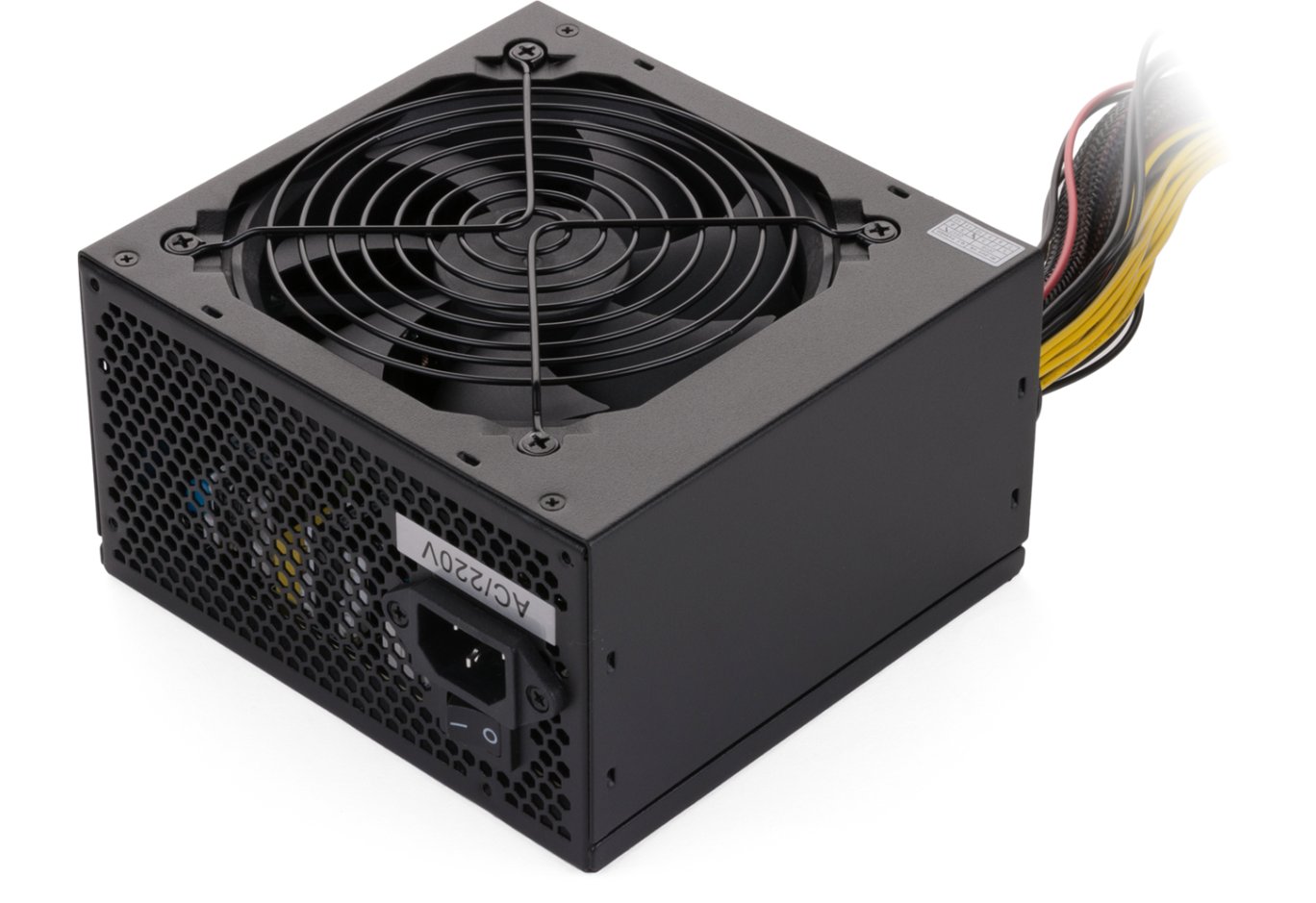

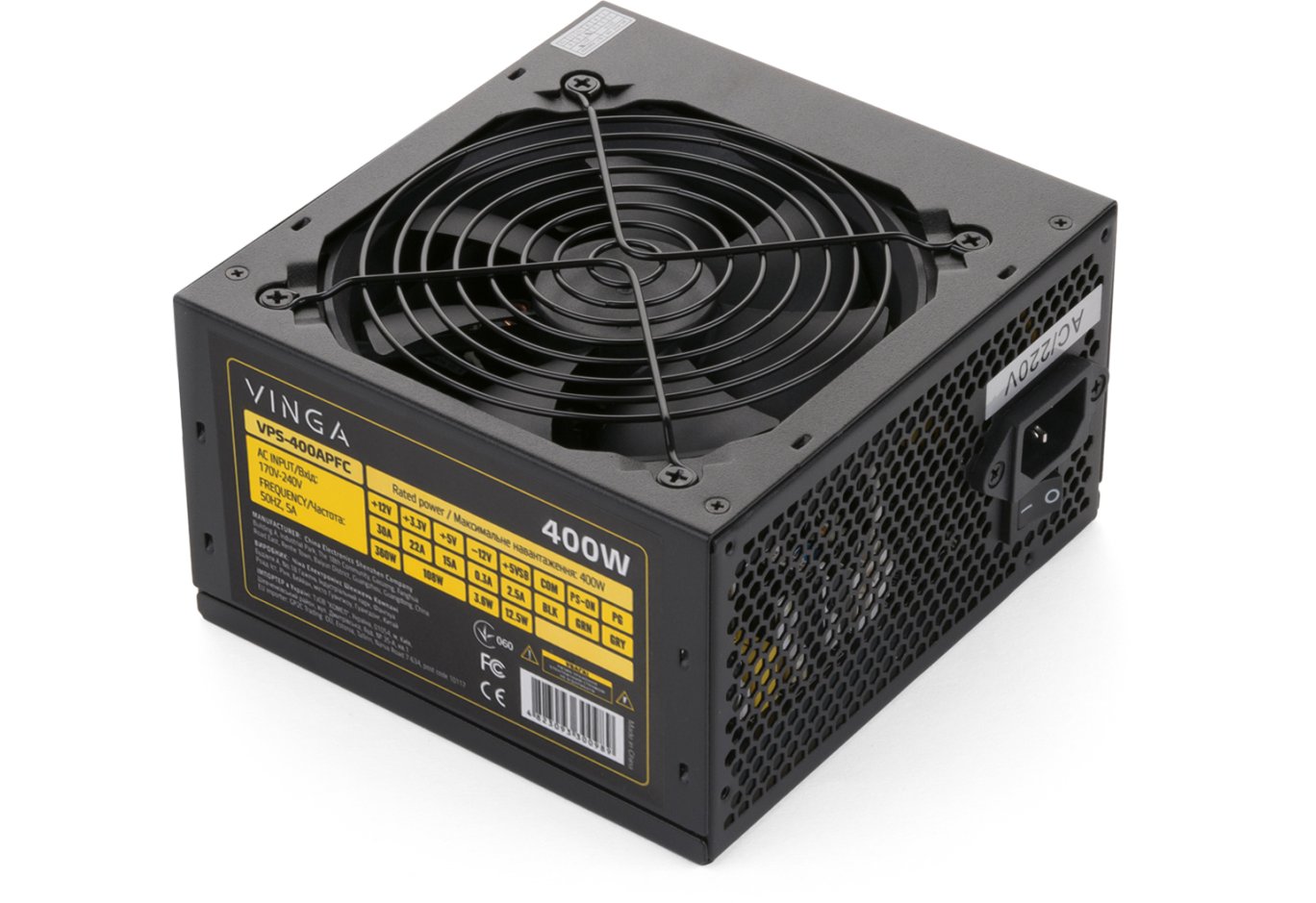

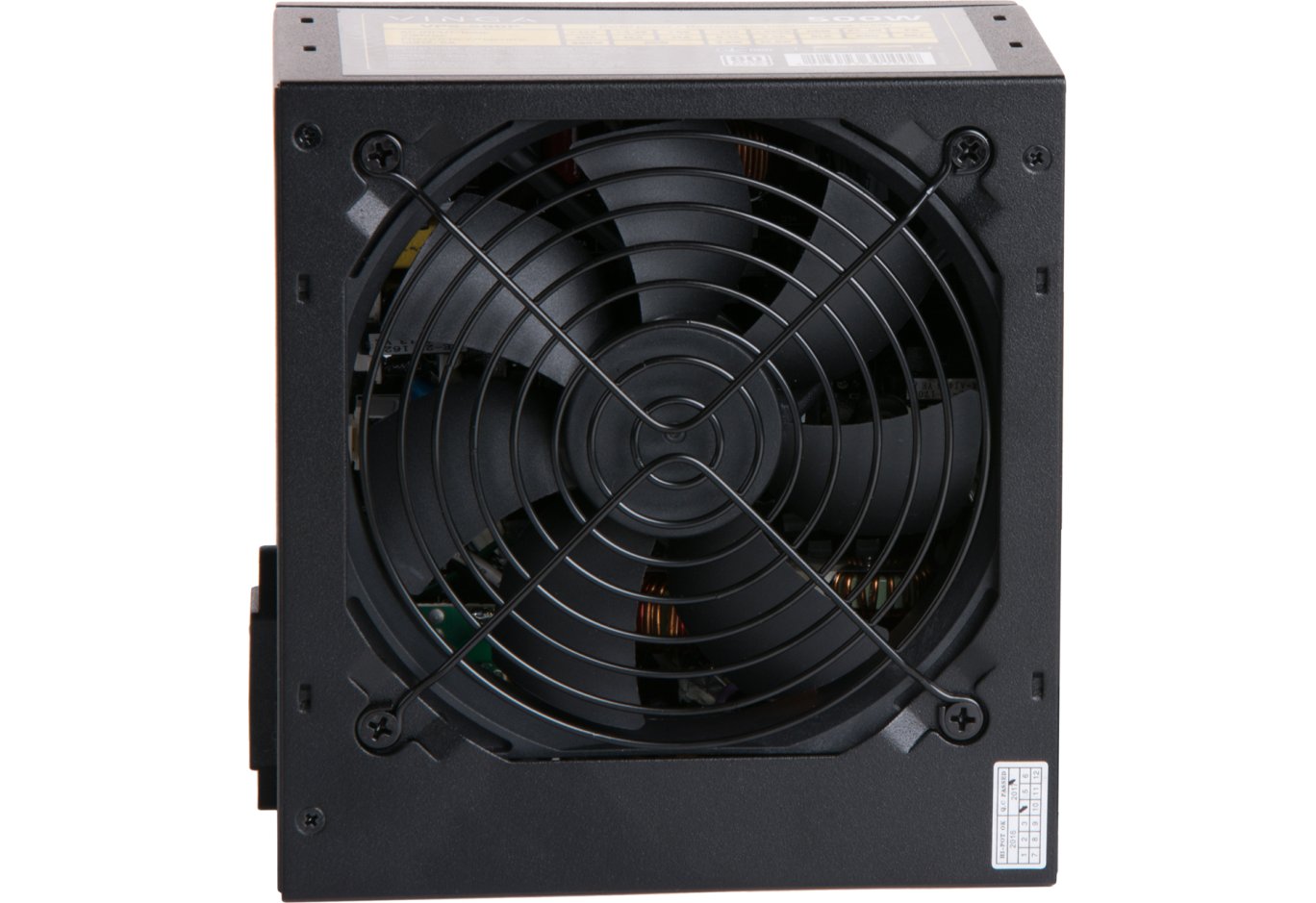

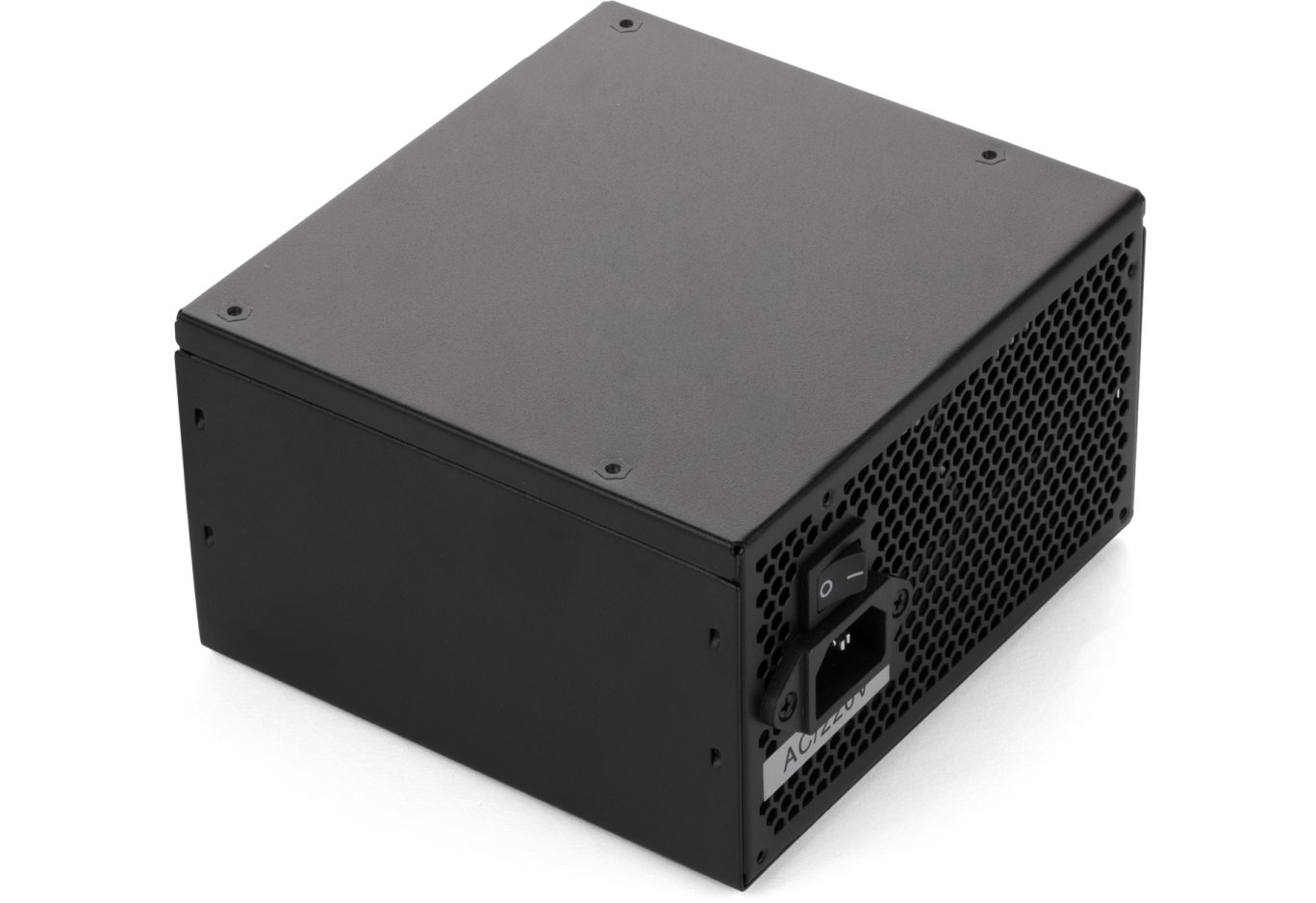

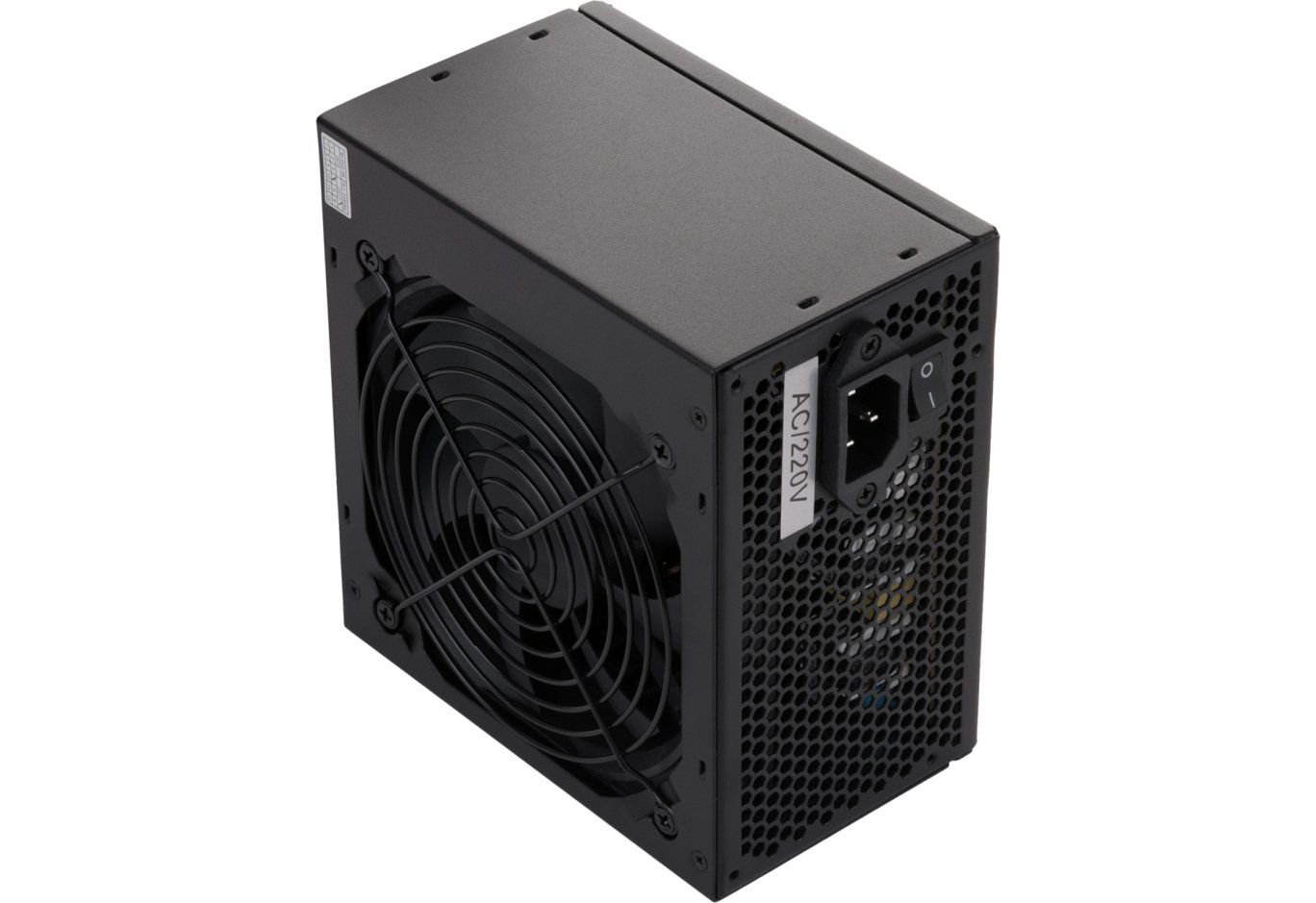

Power supply Vinga 400W (VPS-400APFC)

PSU Vinga 400W VPS-400APFC is designed for low-power PCs. The model is recommended for assembling computers with integrated graphics cards.

The device is equipped with an active PFC system. It excellently corrects the power factor without generating too much heat and makes the power supply less susceptible to voltage drops overall, improving its response to short-term surges. Additionally, such a PFC module creates less high-frequency interference on the lines, making it ideal for installation in PCs equipped with analog peripheral devices. Another significant advantage of the model is that it is equipped with 5 levels of protection.

Comprehensive technological solutions make the unit practically invulnerable to reduced and increased voltage, short circuits, current surges, and overloads on total power. One side of the product's case is treated with perforation. A large number of ventilation holes combined with an efficient cooler continuously expelling heated air ensures reliable cooling of the unit's components, thereby significantly extending their operational life.

Cable length – 480 mm

The length is measured from the board; the length from the PSU itself will be approximately 10 cm shorter.

Characteristics
General
Type
Power supply
Brand
Vinga
Model
400W
Article
VPS-400APFC
Warranty, month
36
Main features
PSU Type
for computers
PSU Standard
ATX
Power
400 W
Modular cable connection
does not have
PFC Module
active
Motherboard connection
24+4 pin
CPU connection
4+4pin
Graphics card connection
1x6+2 pin
Number of additional power connectors for video cards
1
Number of SATA connectors
4
Number of Peripheral connectors
3
Number of FDD connectors
1
OutputСurrent +5V
15A
OutputСurrent +3,3V
22A
OutputCurrent +12V1
30A
OutputСurrent -12V
0.3A
OutputСurrent +5Vsb
2.5A
Cooling type
fan
Fan diameter
1x120 mm
Protection from
OPP (overpower protection), SIP (Surge and Voltage Protection), SCP (short circuit protection), UVP (under voltage protection), OVP (overvoltage protection)
Reviews
e-mail is hidden to all users
Андрей
13.01.2019
Подскажите пожалуйста, какой у него КПД :? спасибо.
22.01.2019
Здравствуйте, Андрей! КПД у данного блока питания - 80%.
Ярослав
09.01.2018
Какая длина проводов для подключения материнской платы и процессора? Ответ: 480мм от платы, от самого блока будет порядка 450мм
